제품 상세 정보:
|
| 상태: | 새로운 공장 봉인(NFS) | 품목 번호: | HC-MFS73K |
|---|---|---|---|
| 기원: | 일본 | 무게: | 3.6 Kg |
| 차원: | 31x10x17cm | ||
| 강조하다: | 미쓰비시 산업 서보 모터,미쓰비시 야스카와 AC 서보 모터 |
||

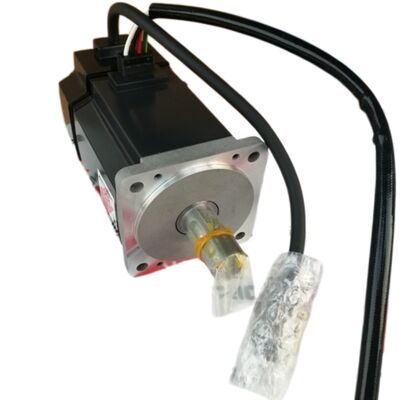

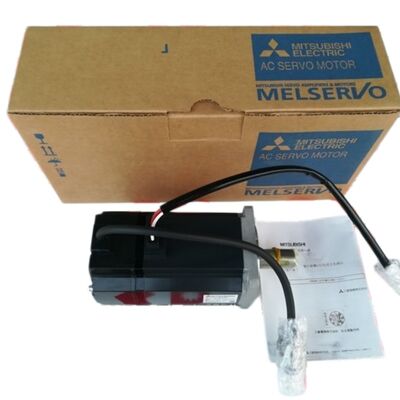

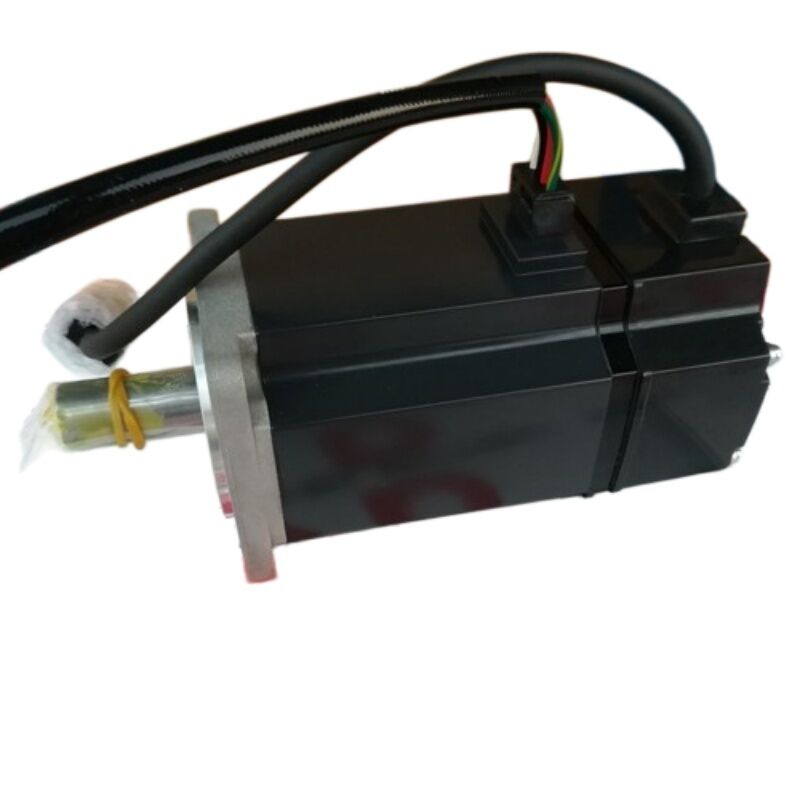

MITSUBISHI NEW HC-MFS73K NEW Mitsubishi 서보 모터
재고 많음, 최적가 제공
설명
The Mitsubishi HC-MFS73K 서보 모터는 다양한 산업 자동화 애플리케이션의 요구를 충족하도록 설계된 MELSERVO 초저관성 소용량 서보 모터입니다. 키가 있는 키웨이 샤프트를 특징으로 합니다. HC-MFS73K 서보 모터는 0.75kW의 출력 전력 등급을 가지고 있습니다. 모터는 2.4Nm의 정격 토크와 3000rpm의 정격 속도로 작동합니다. 정밀한 제어가 필요한 애플리케이션에 적합합니다.
| 매개변수 | 사양 |
|---|---|
| 주요 브랜드 | Mitsubishi Electric |
| 주요 기능 | AC 서보 모터 |
| 제품 시리즈 / 제품군 이름 | MELSERVO J2S 시리즈 |
| 하위 범위 이름 | HC-MF 시리즈 |
| 기능 | AC 브러시리스 회전 서보 모터 |
| 디자인 | 키드 샤프트, 내장형 절대 피드백 엔코더(17비트), 초저관성 / 소용량 |
| 공급 전압 (AC) | 200Vac 클래스 |
| 정격 전류 | 5.1 A |
| 정격 유효 전력 | 750 W / 0.75 kW |
| 회전 속도 | 3000 rpm (최대 4500 rpm) |
| 토크 | 2.4 Nm 공칭, 7.2 Nm 최대 |
| 관성 모멘트 | 0.00006 kg·m² (0.6 kg·cm²) |
| 장착 모드 | 80×80 mm 플랜지 마운팅 |
| 해상도 | 17비트 (131072 ppr 피드백에 해당) |
| 보호 등급 | IP55 |
| 치수 (H×W×D) | 98.1 mm × 82 mm × 182 mm |
| 순 높이 | 98.1 mm |
| 순 너비 | 82 mm |
| 순 깊이 | 182 mm |
| 작동 시 주변 공기 온도 | 0…+40 °C |
| 보관 시 주변 공기 온도 | -15…+70 °C |
| 최대 전류 | 18 A |
